How to set the channel frequency on the baby monitor.

Applicable Products and Categories of This Article

Follow this procedure to set the channel frequency on the baby monitor.

NOTE: Up to 27 channels can be set through the CH selectors by changing the combination of the red, yellow, and green colors.

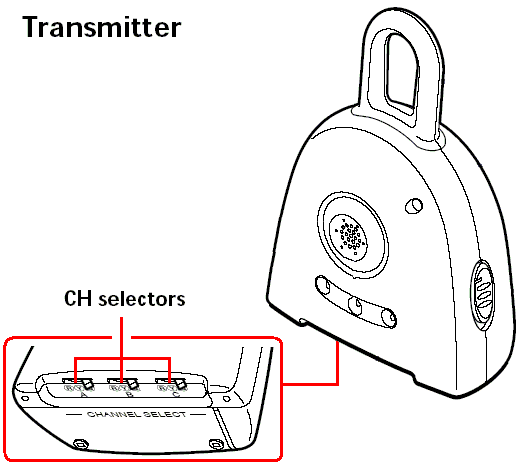

  1. On the bottom of the Transmitter , locate the channel selectors [FIG. 1] .
  2. On the bottom of the Receiver , locate the channel selectors [FIG. 2] .
  3. Ensure the color combinations of the CH selectors of the receiver and transmitter are the same.
