How to set static IP address or domain name and port number for NetAV.

Applicable Products and Categories of This Article

NOTES:

  • Please note that NetAV is for advanced users only.
  • Users must meet the following requirements to use NetAV.
    • Have at least 300 kbps of uplink and downlink bandwidth. Please check with your provider.
    • Have a routable IP address. Users must have either a Fixed IP address or must register with a Dynamic DNS service.
    • When using a home network, the users home router must support either DMZ or Port Forwarding.
  • Sony does not offer a Dynamic DNS service. Sony recommends the service provided by ChangeIP.com, which can be found at http://www.changeip.com/locationfree/.

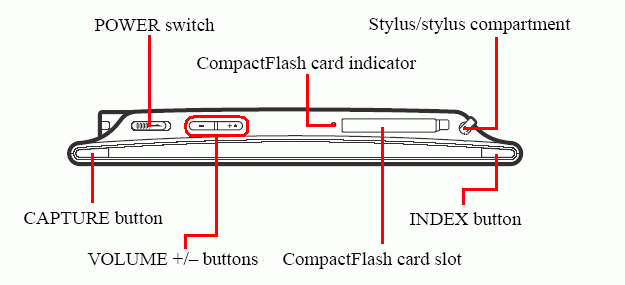

  1. On the top of the monitor, press the INDEX [FIG. 1] button.
  2. On the menu, tap the TV button.
  3. In the TV window, tap the center of the screen.
  4. In the TV window, tap the Settings button.
  5. In the Settings window, tap the Monitor button.
  6. In the Settings window, under Settings, tap the NetAV Settings button.
  7. In the Settings window, under Settings, tap the NetAV Connection button.
  8. In the Settings window, under Settings, tap the Static IP address or domain name of the base station. box.
  9. On the keyboard layout screen, tap the Select All button.
  10. Tap the domain name or static IP address.

    IMPORTANT:

    • Local IP addresses such as 192.168.0.3 will not allow NetAV to function when the monitor is connected to a hotspot or any other network connection other than the supplied base station.
    • The dynamic DNS domain name must not have http://www. or www. in front of the domain name.



  11. Tap the Exit button.
  12. In the Settings window, under Settings, tap the Port number for the NetAV. box.
  13. On the keyboard layout screen, tap the Select All button.
  14. Tap the port number to be used for NetAV.
  15. Tap the Exit button.
  16. In the Settings window, under Settings, tap the OK button.
  17. In the Settings window, under Settings, tap the Back button.
  18. In the Settings window, under Settings, tap the Back button.
  19. In the Settings window, under Settings, tap the Exit button.
